Powerhobby Twister 1/10 1/8 Motor Aluminum High Speed Cooling Fan - Red

Powerhobby Twister Fan w/Aluminum Cover For 1/10 1/8 Motor

Description

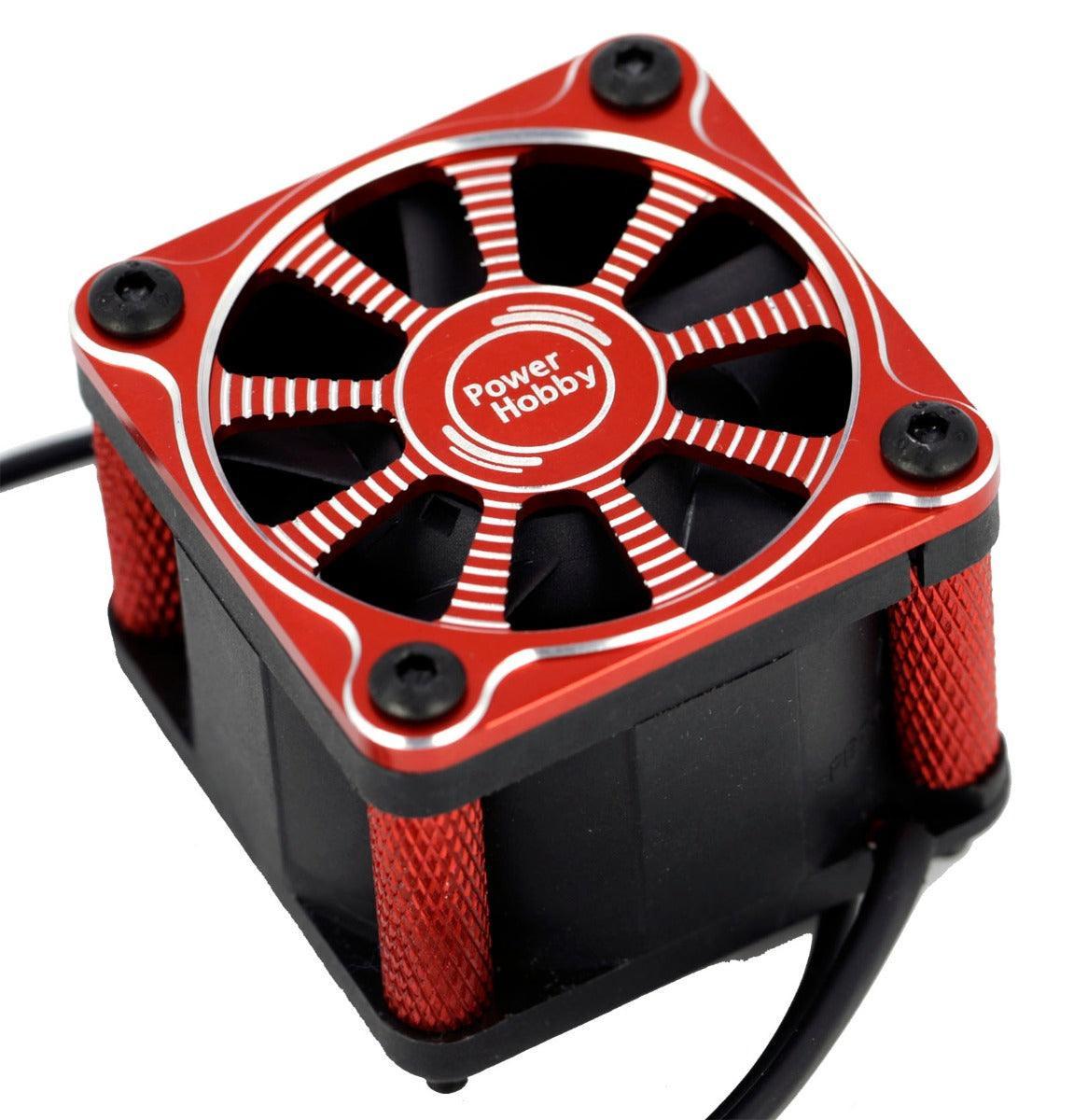

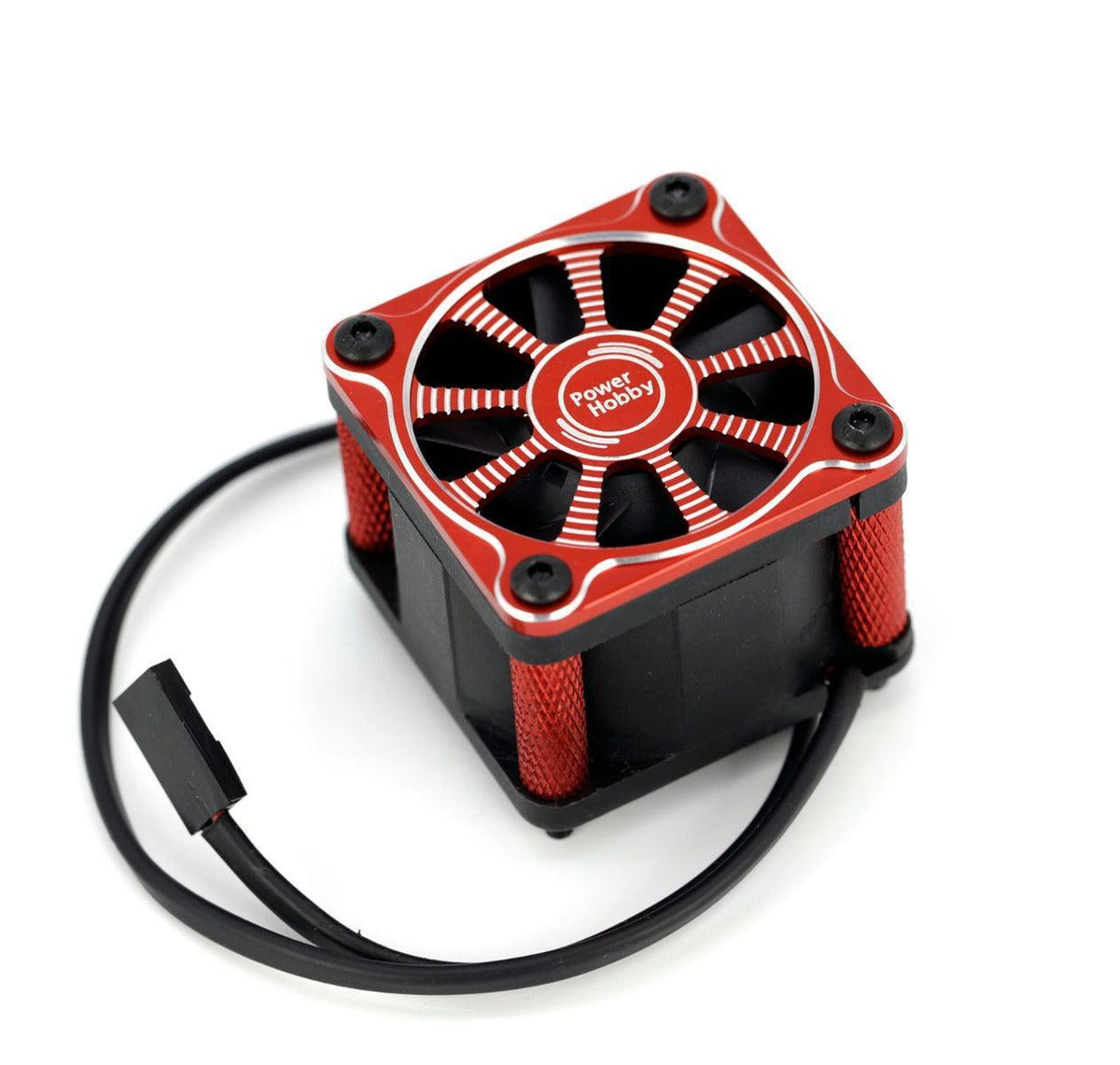

The PowerHobby Twister High-Speed Motor Cooling Fan delivers powerful airflow to help reduce motor temperatures in compatible 1/10- and 1/8-scale RC vehicles.

The 40mm ball-bearing fan features an aluminum protective cover for added durability and a clean appearance. It operates from 6V to 11.1V and includes a 3S LiPo adapter with an inline on/off switch for convenient external power.

A compatible PowerHobby aluminum motor mount is required and sold separately.

Features

• High-speed motor cooling fan
• Designed for compatible 1/10- and 1/8-scale RC vehicles
• Provides high airflow across the motor
• Helps reduce motor temperatures during demanding operation
• Ball-bearing fan construction
• Aluminum protective fan cover
• 40 × 40 × 28mm fan dimensions
• Wide 6–11.1V operating range
• Includes 3S LiPo power adapter
• Includes inline on/off switch
• Compatible with multiple PowerHobby motor-mount sizes
• Red finish

Specifications

• SKU: PHF118-Red
• Barcode: 647489917582
• Product Type: Motor Cooling Fan
• Recommended Scale: 1/10 and 1/8 Scale
• Fan Dimensions: 40 × 40 × 28mm
• Bearing Type: Ball Bearing
• Operating Voltage: 6–11.1V
• Recommended Power Source: Compatible 3S LiPo
• Color: Red

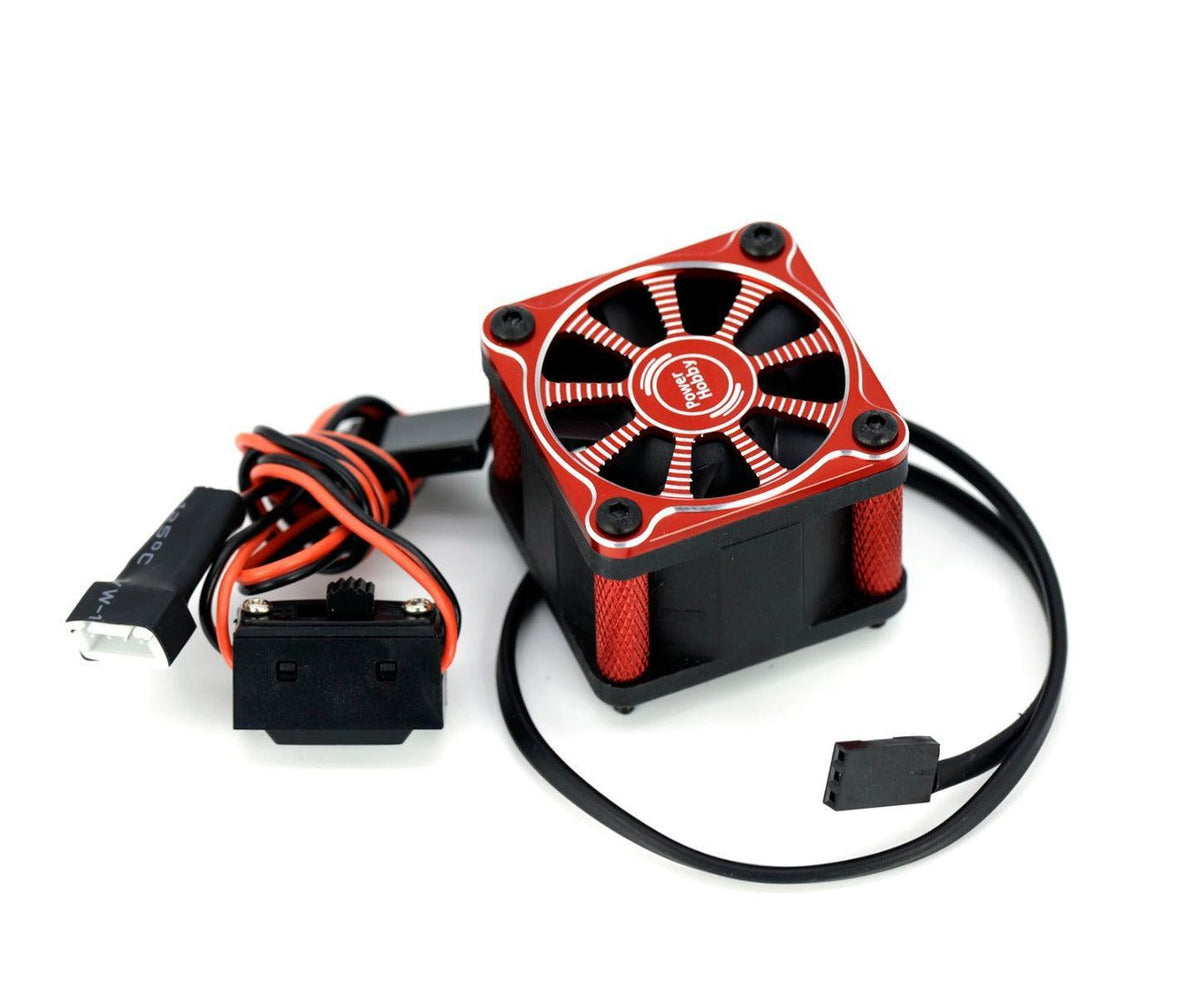

Includes

• 1 PowerHobby Twister High-Speed Cooling Fan
• 1 Aluminum Fan Cover
• 1 3S LiPo Power Adapter
• 1 Inline On/Off Switch

Motor mount is not included.

Compatible Motor Mounts

Select the PowerHobby motor mount matching the outside diameter of your motor:

• PHMount01: 36–38mm diameter motors
• PHMount02: 40–42mm diameter motors
• PHMount03: 47–49mm diameter motors
• PHMount04: 56–58mm diameter motors

Motor mounts are sold separately.

Fits

Universal RC motor-cooling applications using a compatible PowerHobby motor mount, including many:

• 1/10-scale RC vehicles
• 1/8-scale RC vehicles
• On-road cars
• Off-road buggies
• Short-course trucks
• Monster trucks
• Truggies
• Speed-run vehicles
• Custom high-performance RC builds

Verify the motor diameter, selected motor mount, chassis clearance, mounting space, power-source voltage, connector compatibility, and wiring route before purchasing.

Installation Note

Choose the correct motor mount for your motor’s outside diameter and secure the fan assembly so it cannot rotate or move during operation.

Keep the fan, cover, switch, adapter, and wiring away from the motor shaft, pinion gear, spur gear, driveshafts, suspension components, and other moving parts.

Confirm connector polarity before applying power. Do not exceed the listed 11.1V maximum operating voltage.
